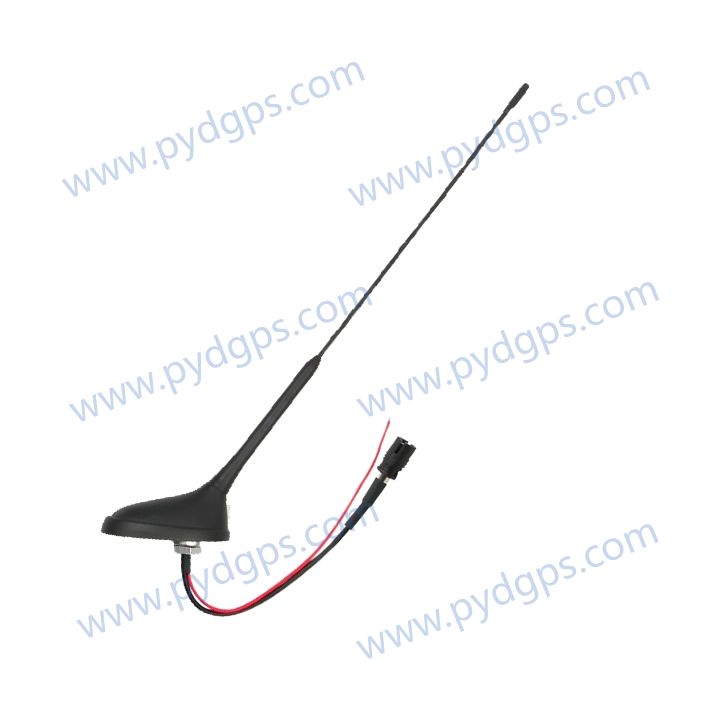

( I ) Product Overview

Frequency: 76-110MHz (FM), 525-1,700MHz (AM)
Gain: +20dB (FM), +5dB (AM)
Impedance: 75 ohm
Cable: 3C-2V
Voltage: 10-14V
Cable length: 8"

Weight（gram）＜240
Size（mm）：95×56×410
Mounting：Screw(Hole/Roof)
Housing：Black

( I I ) Environmental
Working Temp：-40℃~+85℃
Storage Temp：-45℃~+100℃
Vibration：Sine sweep1g(0-p)10~50~10Hz each axis
Humidity：Humidity95%~100%RH
Weatherproof：100%Waterproof

----------------------------------------------------------------------
